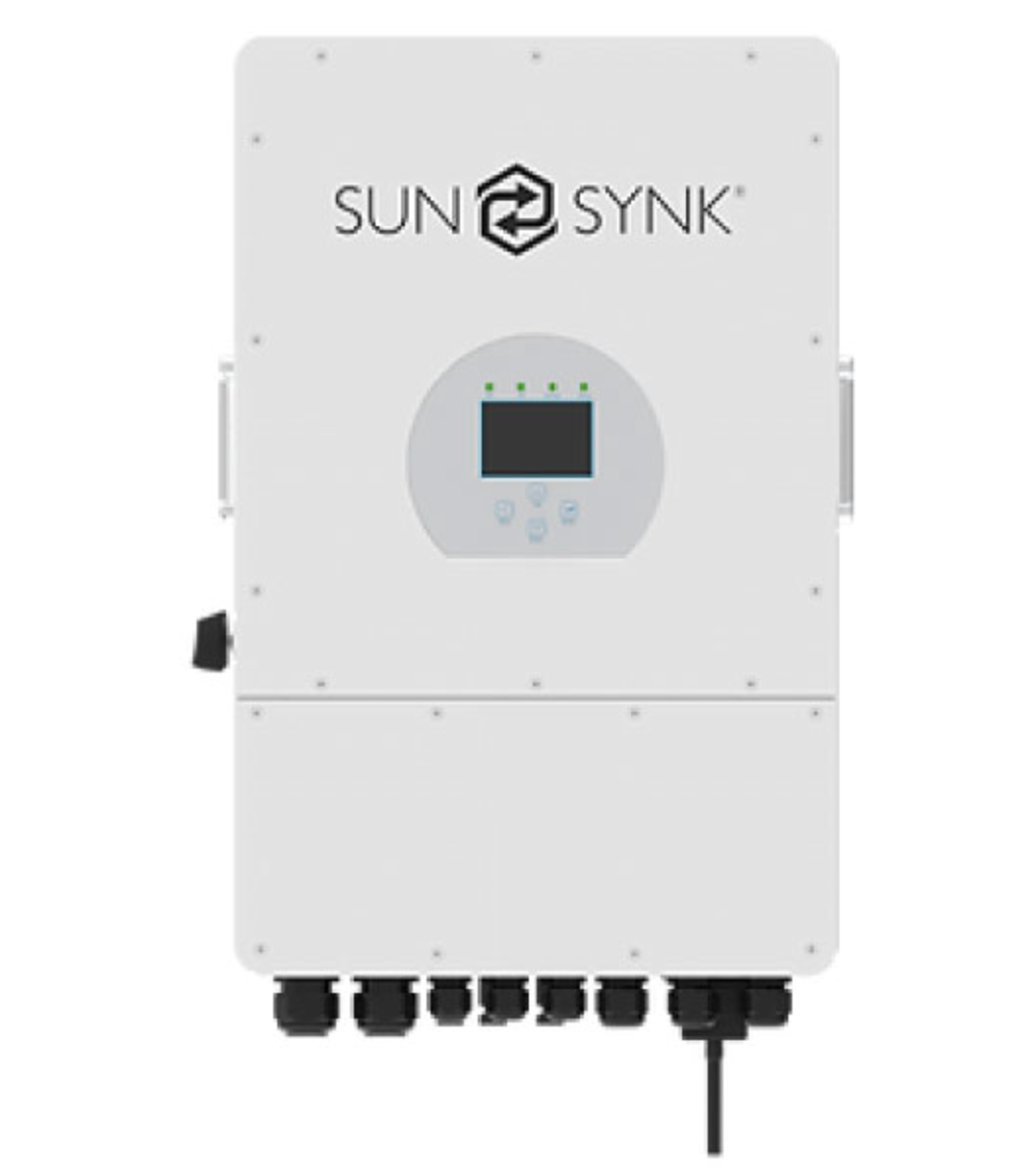

SunSynk 12kW Hybrid Inverter 48V WiFi 3 MPPT Single Phase
The SunSynk 12kW Hybrid Inverter is a high-capacity energy management solution designed for residential, commercial, and backup power applications. Featuring three MPPT trackers, advanced battery compatibility, and integrated WiFi monitoring, this inverter efficiently manages solar generation, battery storage, grid power, and generator backup.
Designed for flexibility and performance, the inverter supports single-phase, split-phase, and selected multi-phase applications while providing seamless backup power and intelligent energy management.
Key Features
12kW Hybrid Inverter
48V Battery System Compatibility
WiFi Monitoring Included
3 Independent MPPT Solar Trackers
Pure Sine Wave Output
Supports Lithium-Ion and Lead-Acid Batteries
Smart Battery Management System Communication
Wall-Mounted Design
IP65 Rated Protection
Smart Cooling System
Remote Monitoring and Configuration via App
Backup UPS Functionality
Solar Input Specifications
Maximum DC Input Power: 13,000W
Number of MPPTs: 3
MPPT Voltage Range: 150V – 425V
Start-Up Voltage: 125V
Battery Specifications
Battery Voltage Range: 40V – 60V
Maximum Charge/Discharge Current: 220A
Battery Types Supported:
Lithium-Ion Batteries
Lead-Acid Batteries
BMS Communication:
CAN
RS485
AC Output Specifications
Rated AC Output Power: 10,000W
Maximum AC Output Power: 11,000W
Rated AC Output Current: 45.5A / 43.5A
Performance
Maximum Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.9%
UPS Transfer Time: 6ms
Physical Specifications
Installation Type: Wall Mounted
Protection Rating: IP65
Noise Level: Less than 30dB
Weight: 32kg
Dimensions: 420 × 670 × 233mm
Applications
Suitable for:
Residential Solar Systems
Commercial Solar Installations
Backup Power Systems
Load Shedding Solutions
Energy Storage Systems
Off-Grid and Hybrid Solar Applications
Monitoring
WiFi Dongle Included
Remote Monitoring via Mobile App
Warranty
Manufacturer warranty applies according to the supplier's warranty terms and conditions.
Installation Requirements
All installations must be carried out by a qualified and registered electrician. A valid Certificate of Compliance (COC) must be issued upon completion of the installation. Installations must comply with applicable South African electrical regulations and standards.
