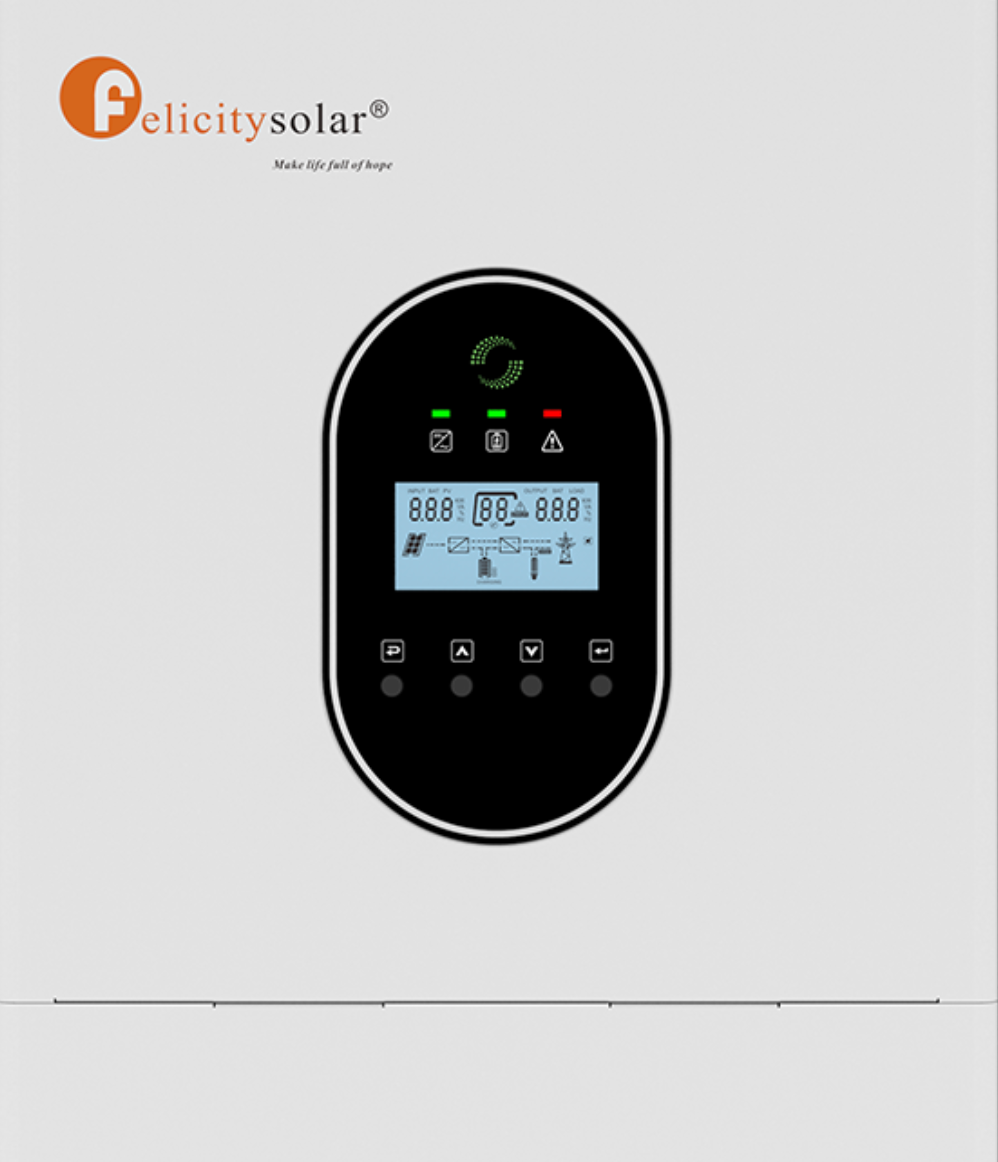

Felicity IVCM1012 Off-Grid Inverter 1kW 12V
The Felicity IVCM1012 Off-Grid Inverter is designed for residential backup power, solar energy systems, and essential load applications. Featuring pure sine wave output and an integrated MPPT solar charge controller, this inverter supports solar charging, battery charging, and AC input charging within a compact design.
The inverter includes configurable charging settings, LCD controls, multiple protection functions, and support for utility or generator input, making it suitable for small off-grid and backup power installations.
Key Features:
1000W / 1000VA off-grid inverter
Pure sine wave output
12V battery system compatibility
Integrated MPPT solar charge controller
Configurable battery charging settings
Configurable AC and solar charging priority
LCD control interface
Utility and generator compatibility
Automatic AC recovery restart
Cold start function
Built-in overload protection
Built-in short-circuit protection
Built-in over-temperature protection
Specifications
General
Brand: Felicity Solar
Model: IVCM1012
Type: Off-Grid Inverter
Rated Output Power: 1000W / 1000VA
Nominal Battery Voltage: 12V DC
Warranty: 2 Years
AC Input
Nominal Input Voltage: 230V AC
Input Voltage Range: 90V – 280V AC
Low Line Voltage Disconnect: 170VAC / 75VAC
Low Line Voltage Reconnect: 180VAC / 75VAC
Output
Nominal Output Voltage: 230V AC
Output Waveform: Pure Sine Wave
Transfer Time: 10ms (UPS Mode)
Transfer Time: 20ms (Appliance Mode)
Line Mode Efficiency: Greater than 95%
Solar Charger
Maximum PV Open Circuit Voltage: 50V
PV Operating Voltage Range: 15V – 25V
Maximum PV Input Power: 550W
Maximum Solar Charging Current: 50A
AC Charger
Maximum AC Charging Current: 20A
Maximum Combined Charging Current: 70A
Adjustable Charge Current: 10A – 20A
Protection
Overload Protection
Short-Circuit Protection
Over-Temperature Protection
Physical Specifications
Product Dimensions: 328 × 220 × 70 mm
Package Dimensions: 422 × 314 × 182 mm
Net Weight: 5.5 kg
Operating Temperature: -10°C to +55°C
What's Included
1 × Felicity IVCM1012 Off-Grid Inverter
1 × User Manual
Battery Cable Set
1 × AC Input Cable
Mounting Hardware (where applicable)
Applications
Small solar systems
Home backup power
Essential load applications
Off-grid power systems
Residential energy systems
Important Information
Installation must be carried out by a qualified electrician or solar installer.
A valid Certificate of Compliance (COC) may be required for warranty purposes.
Installation should comply with applicable electrical regulations and standards.
Batteries, solar panels, cabling, breakers, and protection devices are sold separately unless otherwise specified.
Actual system performance may vary depending on installation design, battery configuration, solar array sizing, environmental conditions, and load requirements.
