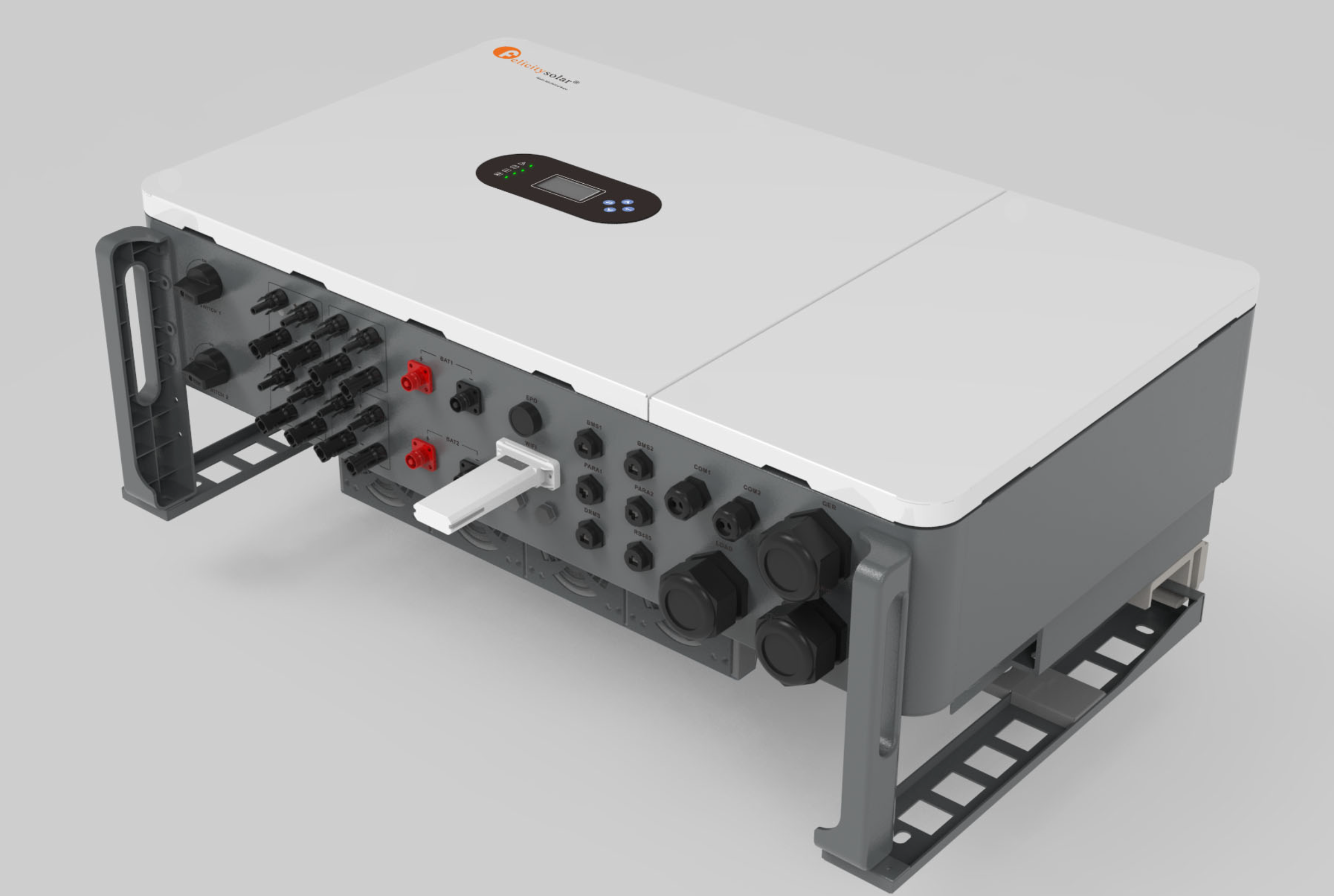

Felicity ESS T-REX Hybrid Inverter 50kW Three Phase

The Felicity ESS T-REX 50kW Three Phase Hybrid Inverter is designed for commercial and industrial solar energy systems. This hybrid inverter supports solar generation, battery storage, grid interaction, and backup power applications within a single energy management platform.

Featuring dual battery inputs, dual MPPT trackers, and a 3.5-inch LCD touchscreen, the inverter provides system monitoring and configuration capabilities. It is compatible with high-voltage LiFePO₄ battery systems and supports multiple operating modes including self-consumption, backup power, and grid-tied applications.

Key Features:

• 50kW three-phase hybrid inverter

• Dual MPPT solar input

• Dual independent battery inputs

• Compatible with high-voltage LiFePO₄ batteries

• 3.5-inch LCD touchscreen display

• Cloud monitoring capability

• Generator integration support

• Multiple operating modes

• IP65-rated enclosure

• RS485 and CAN communication

• Intelligent air cooling system

• Suitable for commercial and industrial applications

Specifications:Brand: Felicity ESSSeries: T-REXModel: T-REX-50KHP3G01Type: Three Phase Hybrid Inverter

Battery:

• Battery Type: LiFePO₄

• Battery Voltage Range: 180V – 600V DC

• Maximum Charging Current: 50A

• Maximum Discharging Current: 50A

• Battery Inputs: 2 Independent Battery Ports

PV Input:

• Maximum PV Input Power: 65kW

• Maximum PV Input Voltage: 1000V DC

• MPPT Voltage Range: 200V – 850V DC

• Rated PV Input Current: 2 × 26A

• Number of MPPT Trackers: 2

AC Output:

• Rated Output Power: 50kW

• Maximum Output Power: 55kW

• Rated AC Voltage: 220/380V, 230/400V, 240/415V ±15%

• Rated Frequency: 50Hz / 60Hz ±5Hz

• Maximum Output Current: 73.7A

• THDi: <3%

• Power Factor: 0.8 Leading to 0.8 Lagging

Efficiency:

• Maximum Efficiency: 97.8%

• European Efficiency: 97.3%

• MPPT Efficiency: 99.9%

General:

• Protection Rating: IP65

• Operating Temperature: -25°C to +60°C

• Maximum Altitude: 3000m

• Communication: RS485 / CAN

• Cooling Method: Intelligent Air Cooling

• Display: 3.5-inch LCD Touchscreen

• Dimensions: 949 × 599 × 300 mm

• Weight: 63 kg

What's Included:

• 1 × Felicity ESS T-REX 50kW Hybrid Inverter

• 1 × User Manual

• 1 × RS485/CAN Communication Cable Set

• 1 × Mounting Kit

• 1 × AC/DC Connector Set

• 1 × Warranty Card

Important Information:

• Installation must be carried out by a qualified electrician or solar installer.

• A valid Certificate of Compliance (COC) may be required for warranty purposes.

• Installation should comply with applicable electrical regulations and standards.

• Battery systems, solar panels, cabling, and protection equipment are sold separately unless otherwise specified.

• Actual performance may vary depending on installation design, battery configuration, environmental conditions, and operating loads.

• Warranty terms and conditions apply.
