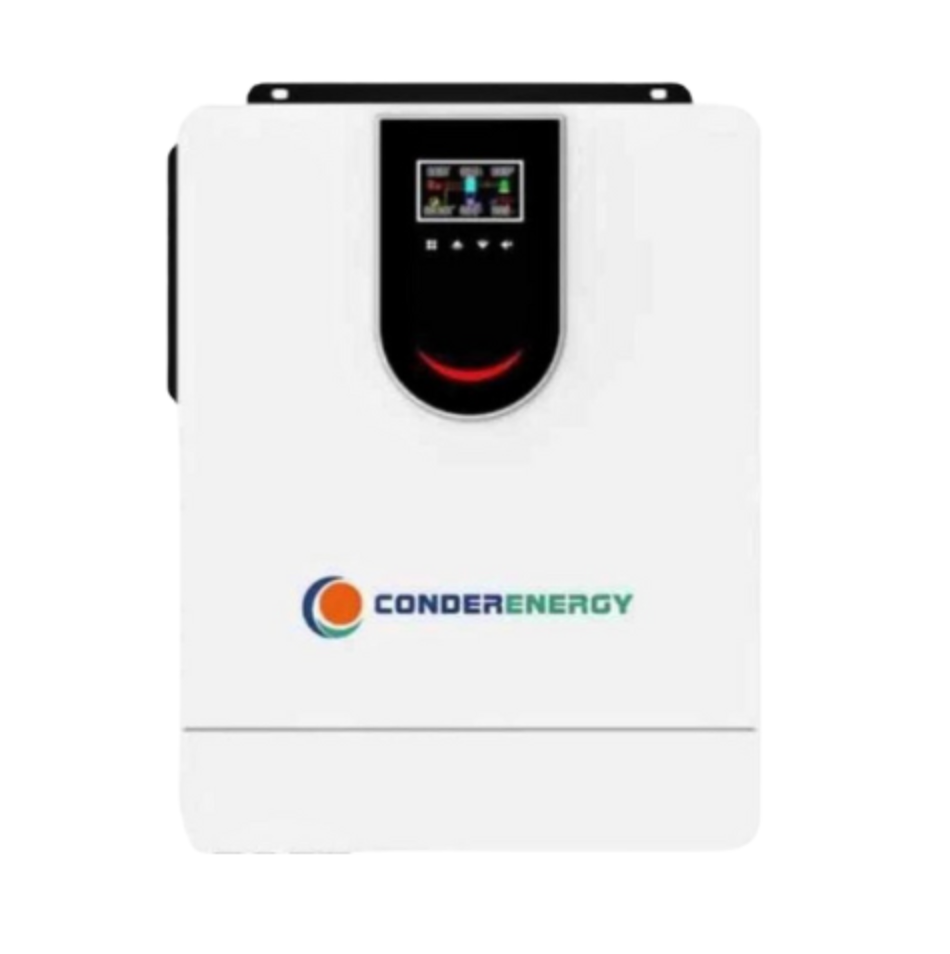

ConderEnergy Hybrid MPPT Inverter 10.2kVA 10.2kW 48V – S-2100

The ConderEnergy S-2100 Hybrid MPPT Inverter is a 10.2kVA / 10.2kW power solution designed for residential, commercial, and backup energy applications. Combining inverter, solar charger, and battery charger functionality in a single unit, it is suitable for use in both solar and battery-based energy systems.

The inverter features an integrated MPPT solar charge controller, pure sine wave output, configurable charging settings, and support for utility or generator input. An LCD display provides access to system settings, operating modes, charging priorities, and system information.

Key Features:

• 10.2kVA / 10.2kW output capacity

• Hybrid inverter with integrated MPPT charger

• 48V battery system compatibility

• Pure sine wave output

• Built-in solar charger and battery charger

• LCD display with configurable settings

• AC and solar charging priority selection

• Utility and generator compatibility

• Automatic restart after AC power recovery

• Overload protection

• Over-temperature protection

• Short-circuit protection

• Cold start function

Specifications:

General:

• Brand: ConderEnergy

• Model: S-2100

• Type: Hybrid MPPT Inverter

• Rated Power: 10.2kVA / 10.2kW

• Battery Voltage: 48V

PV Input:

• Maximum PV Open Circuit Voltage: 500VDC

• MPPT Voltage Range: 90VDC – 450VDC

AC Output:

• Nominal Output Voltage: 220V / 230V / 240VAC

• Feed-in Grid Voltage Range: 195V – 253VAC

• Frequency Range: 49Hz – 51Hz

• Nominal Output Current: 15.7A

• Power Factor: >0.99

• Maximum DC/AC Conversion Efficiency: 97%

• Operating Frequency: 50Hz / 60Hz

Load Capacity:

• Maximum Output Power: 10,200W

• Maximum Main Load: 10,200W

• Maximum Second Load: 3,400W

Dimensions & Weight:

• Dimensions: 555 × 405 × 135 mm

• Weight: 14.5 kg

What's Included:

• 1 × ConderEnergy S-2100 Hybrid Inverter

• 1 × User Manual

Important Information:

• Wi-Fi dongle sold separately.

• Installation must be carried out by a qualified electrician in accordance with applicable electrical regulations and standards.

• A Certificate of Compliance (COC) may be required for warranty and compliance purposes.

• Warranty terms and conditions apply.

• Actual system performance depends on installation design, battery configuration, solar array sizing, and operating conditions.
